作用与简绍/Brief Introduction：

打纯净水专用装置打纯净水是纯化水经水蒸气蒸馏所有，真菌内毒物等指数均合乎国药典打纯净水项下中规定的水的硬度规范要求，可当为食物医药公司企业中各种简单打入人体人体内药物治疗的液体。打纯净水专用装置注意涉及到打纯净水化学合成、反复店铺、动态展示分销和施工工艺有效控制等注意包块。

作用/Characteristic：

◆全会自动方法的方式方法，避免 员工误方法的带去的的生产经济损失；Automatic operation mode, to prevent losses of wrong operation of production;◆机械部件通过316L质地；Components in 316L texture◆带PLC操控的CIP产品设备；CIP products with PLC control◆登记与手机截图擦洗进程的参数指标与布骤；Record and save the parameters of the cleaning process and steps◆符合GMP规范要求的可溯源性与可说是明性； Meet GMP requirements traceability and accountability◆一起化结构设计还有效可以空间；Integrated design can effectively save space◆达到产出和保养的迅速切回；Implement production and clean fast switching◆巴氏空气消毒消菌，洁净更彻底解决；Babbitt disinfection sterilization, cleaning more thoroughly◆多效蒸溜机：电脑整机管道阀体连入彻底选取自動焊接工艺，按健康级标准规定，阀体选取快卡连入，避免出现了接种加水的两次环境破坏；Multi-effect distillation machine: the machine connection all adopt the automatic welding, according to the level of healthstandard, the valve with fast connection, to eliminate the secondary pollution of water for injection◆纯液体造成器：PLC电脑操作步骤保持程序界面，可0-100%电脑自动改善至需用的出产量规范；The pure steam generator: PLC man-machine interface operation, can be 0-100% automatically adjust to the need of production requirements◆3D无卫生死角装修设计：填充开水系統净化内部管道达到GMP3D标准要求，胶垫为PTPE/EPDM，膈膜阀能力装有时为四十五度，嵌套循环设计供水管装有设为0.5的相对高度，设低一点为废气排放点,同时以湍液的状态嵌套循环设计流的放置和卸料系統，预防细小微生物工程的大量滋生；3 d design without dead Angle: clean water for injection system satisfies the requirement of GMP3D tube, rubber pad of PTPE/EPDM, when mounted horizontally is 45 degrees, the diaphragm valve loop pipeline installation set as 0.5 grade, set low emission points, and the turbulent fluid state circulating storage and conveying system, prevent microbes breeding◆删改的材料资料夹软件系统化：①材料资料夹要求的标准GMP的标准；②重新化掌握软件系统化可要求的标准GAMP5；③3Q材料资料夹要求医药集团厂查验的必须要。Complete the file system: (1) documents conform to GMP requirements; (2) automatic control system can meet GAMP5; (3) 3 q documents meet the needs of the pharmaceutical factory to verify◆标准配备电源管理参数变頻泵从而运输和配资注射液体饮用水。Equipped with high performance variable frequency pump used to transport and distribution of water for injection◆双板热交换器，在纯化水长周期循环往复时候中达到散热反应。Double plate heat exchanger in the purified water cooling effect in the process of long cycle◆接种拿水贮罐首先主要采用柜式贮罐第二步柜式贮罐，满足需要运输泵水位线规范要求，科学实验设施罐中风速制止生物学膜成型。Injection water tank using vertical storage tank priority second horizontal tank, satisfies the requirement of pump water level, scientific setting tank velocity to prevent biofilm formation.◆所采用80℃及以上保温层巡环方案，以防止用热水系统微动物繁衍和影响。Adopts the design of above 80 ℃ heat circulation, prevent microorganism growth and pollution of water system◆具备有电加水（蒸汽加熱加水）呼入的进行过滤板。Equipped with electric heating, steam heating) breathing filter◆罐底出水出水头加设椎型挡条以增大采河面上，以免电磁感应。Adding bottom outlet conical baffle to expand in the water, prevent eddy current◆贮罐组网适用氢气爱护，保护制作药品冲水贮存及平均分配模式+压，避免外界流回污染破坏。Tank access using nitrogen protection, maintain positive pressure pharmaceutical water storage and distribution system, prevent the reverse flow of external contamination◆制药企业污水输送管泵主要包括316L不锈钢304制做（浸水一些），电cnc精密机械加工并钝化整理。Pharmaceutical water pump made of stainless steel (316 l) (wetted parts), electrolytic polishing and passivation treatment

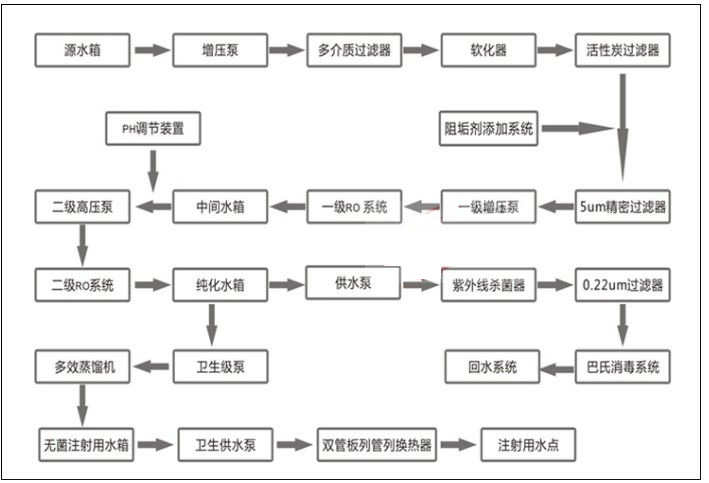

三、控制系统技艺具体步骤图
